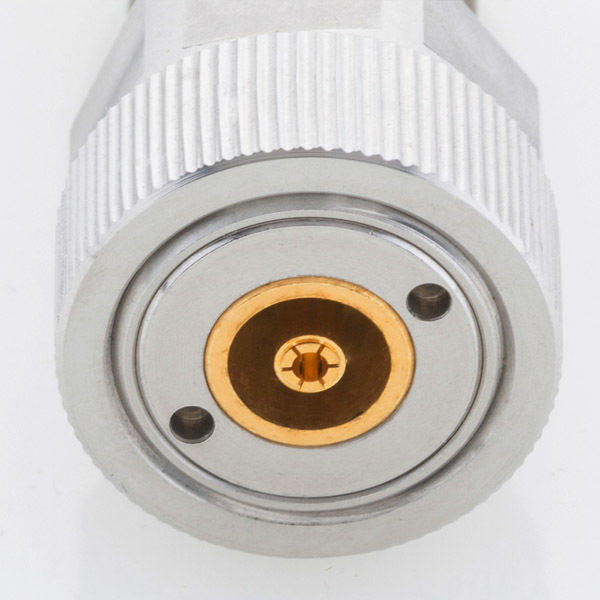

7mm Calibration Kits

The product adopts the SOLT calibration method, which is used for calibrating 7mm non-polar ports with an operating frequency range from DC to 18GHz.

Download：

Details

--- Applicable to VNAs produced by various companies

--- Comes with calibration parameters, which can be input into the instrument to establish a calibration procedure

--- 7mm是单极性产品，没有阴头和阳头的区分

Specification

*Options: adapters, torque wrenches

Precision Type

Model	Frequency	Cal. Method	Basic Configuration
3550F18	DC~18GHz	SOLT	Sexless：Open、Short、Fixed Load

Model Number Description

35	50	F	18	＊
\|	\|	\|	\|	\|
1	2	3	4	5
1--35 ：Connector 2--50 ： 50Ω 3--F ：“F”- Discrete Devices； 4--18 ：Frequenc，GHz 5--＊：“Blank”-Basic Configuration；“C”-Adapter（N to 7mm） and Torque Wrench Included；

Notes

Calibration kits are precision measurement devices. It is essential to ensure that the mating connectors meet the standards.

If a calibration kit is damaged, it can be sent back to our company for inspection and repair.
