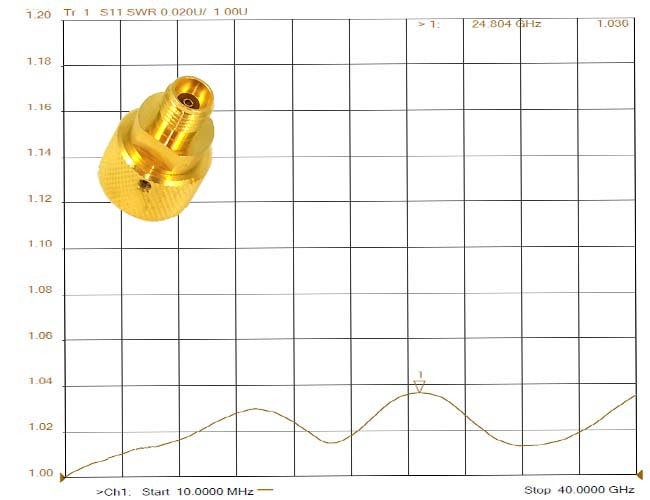

2.92mm Calibration Kits


SOLT calibration method and is applicable to the calibration of 2.92mm (also known as K or SMK) ports.

Details

--- Applicable to VNAs produced by various companies

--- Comes with calibration parameters, which can be input into the instrument to establish a calibration procedure

--- 2.92mm is also known as K-type, SMK.



Specification

*Options: adapters, torque wrenches

Precision Type
Model Frequency Cal.  Method Basic Configuration
6750F40 DC~40GHz SOLT M/F:Open、Short、Fixed Load
4-in-1 Type
Model Frequency Cal.  Method Basic Configuration
6750G40-M DC~40GHz SOLT M:Open、Short、Fixed Load、Adapter
6750G40-F DC~40GHz SOLT F:Open、Short、Fixed Load、Adapter



Model Number Description

67 50 F 40 *
 | | | | |
1 2 3 4 5

1--67 :Connector

2--50 : 50Ω

3--F :“F”- Discrete Devices;“G”- 4-in-1

4--40 :Frequenc,GHz

5--*:“Blank”-Basic Configuration;“C”-Adapter and Torque Wrench Included;



67 50 F 40 — M *
 | | | |   | |
1 2 3 4   5 6

1--67 :Connector

2--50 : 50Ω

3--F :“F”- Discrete Devices;“G”- 4-in-1

4--40 :Frequency,GHz

5--M:“M”-Only Male;“F”-Only Female;

6--*:“Blank”-Basic Configuration;“C”-Adapter Included;



Notes

Calibration kits are precision measurement devices. It is essential to ensure that the mating connectors meet the standards. Before connection, use a connector gauge to inspect the interface, and proceed with calibration only after confirming it is qualified. The recommended gauge model is MDK-66D.

If a calibration kit is damaged, it can be sent back to our company for inspection and repair.
