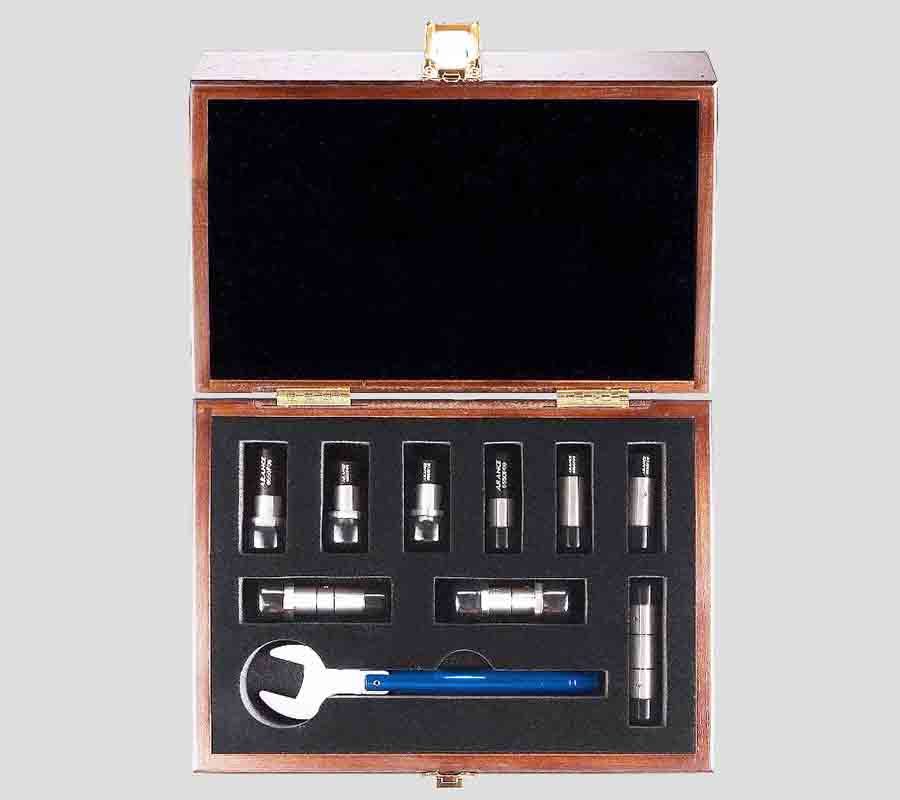

L16 Calibration Kits


Adopting the SOLT calibration method, with a frequency range of DC~9GHz, it is used for calibrating L16 (metric N-type) ports.

Details

--- Applicable to VNAs produced by various companies

--- Comes with calibration parameters, which can be input into the instrument to establish a calibration procedure

--- L16尺寸等同N型,但采用了公制螺纹,不能与N型互接。



Specification

*Options: adapters, torque wrenches

Precision Type
Model Frequency Cal.  Method Basic Configuration
5650F09 DC~9GHz SOLT M/F:Open、Short、Fixed Load



Model Number Description

56 50 F 09 *
 | | | | |
1 2 3 4 5

1--56 :Connector

2--50 : 50Ω

3--F :“F”- Discrete Devices;

4--09 :Frequenc,GHz

5--*:“Blank”-Basic Configuration;“C”-Adapter and Torque Wrench Included;







Notes

Calibration kits are precision measurement devices. It is essential to ensure that the mating connectors meet the standards.

If a calibration kit is damaged, it can be sent back to our company for inspection and repair.

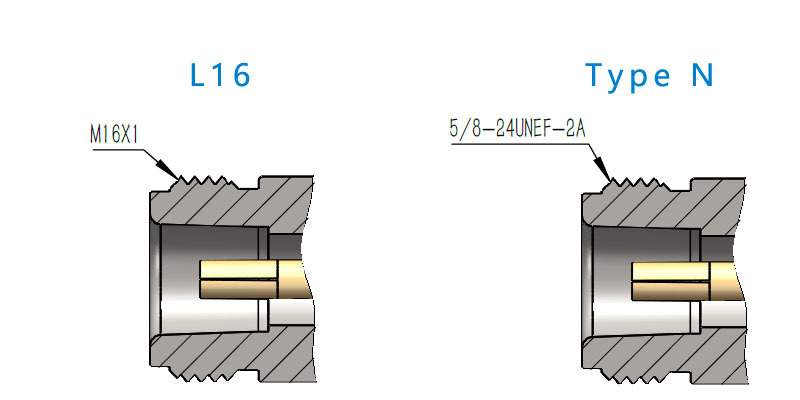

L16 is a type of Chinese connector product. Its dimensional specifications are basically the same as those of N-type connectors, with the only difference being in the thread standard. The N-type connector features British thread 5/8-24UNEF, while the L16 uses metric fine thread M16×1. The thread sizes are close but not fully compatible. See the figure below:
